Red prime

Model : RF40

"The Indispensable Manual System for

Everyday Fluorescence Research"

Image Asset_Wixel.png

 Essential Function

+ Software-Driven Z-Axis Automation and  Auto Focus

+ Auto Z-stacking : Beyond Single Focal Plane Imaging

+ Magicvision™ :  Blur-Free Fluorescence Processing

+ Automatic Objective Magnification Detection

The Manual Standard Fluorescence Microscope Imaging system

Optical System
Observation Method
Observable Containers
Nosepiece
Objective Lenses
Mechanical stage
Transmitted
Illuminator
Fluorescence
Illuminator
Fluorescence
Filters
Image Sensor
Red Analysis
Imaging Software
  • Inverted type microscope

  • Infinity-corrected optical system

  • The MagicPath optical path is designed by LEAM Solution Inc.

  • Brightfield, Fluorescence, Phase contrast

  • ​Culture dish, Well plate, Slide glass, Flask, etc.​.

  • ​Revolving type quintuple nosepiece (Manual)

  • Lplan Fluor 4x, 10x, 20x, 40x (Standard)  / Optional: 2X, 60X, 100X (Oil)

  • ​X-Y Travel range: 130 x 90 mm (Manual)​​

  • ​​Visible White LED

  • 3 position rotating annuli wheel (BF /Ph/ Shutter)

  • Intensity adjustable knob (Manual)

  • Built-in 4-channels Peak LEDs Lifetime: > 50,000 Hr

  • Wavelength : 365nm, 470nm, 550nm, 620nm

  • Intensity adjustable knob (Manual)

  • DAPI, FITC, Texas Red, Cy5 fluorescence filter cubes

  • Manual quintuple Fluorescence Filter Turret (Manual)

  • Built-in  Low-noise CMOS sensor

  • Max Resolution : 4000x3000

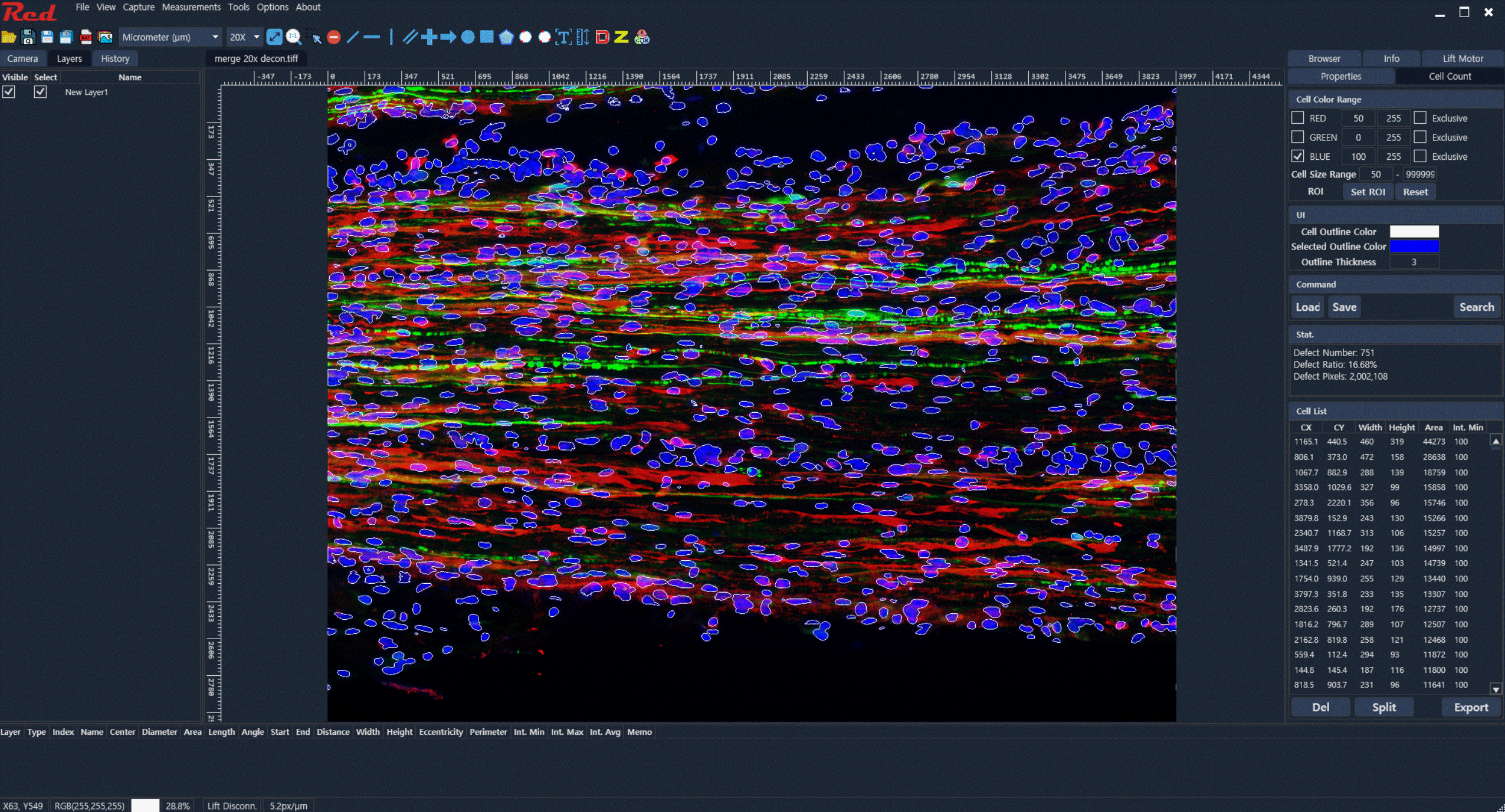

  • Red Analysis Imaging software included

  • Cell counting and fluorescence intensity analysis

  • Live image merging : Max. 5 channels (1 bright field + 4 fluorescnece)

  • MagicDepth : Auto Focus & Z-Stack (Z-step Resolution: 0.1㎛)

  • Z-Axis focus position controller (e-focus) : Z-position save, move, preset, autofocus

  • MagicVision : eliminates out-of-focus blur and restores lost details using advanced deconvolution algorithms

  • We provide remote technical support for software control
    Software-Driven  Z-Axis Automation and autofocus
    + Auto Z-stacking
    + Automatic ObjectiveMagnification Detection

Red's Technolgy

  • MagicPath™ Technology Minimizes optical loss to detect weak signal

  • MagicVision™ Technology Transforms blurry fluorescence images into crystal-clear clarity

  • MagicDepth™ Technology Enables effortless and automated Z-stack image merging.
